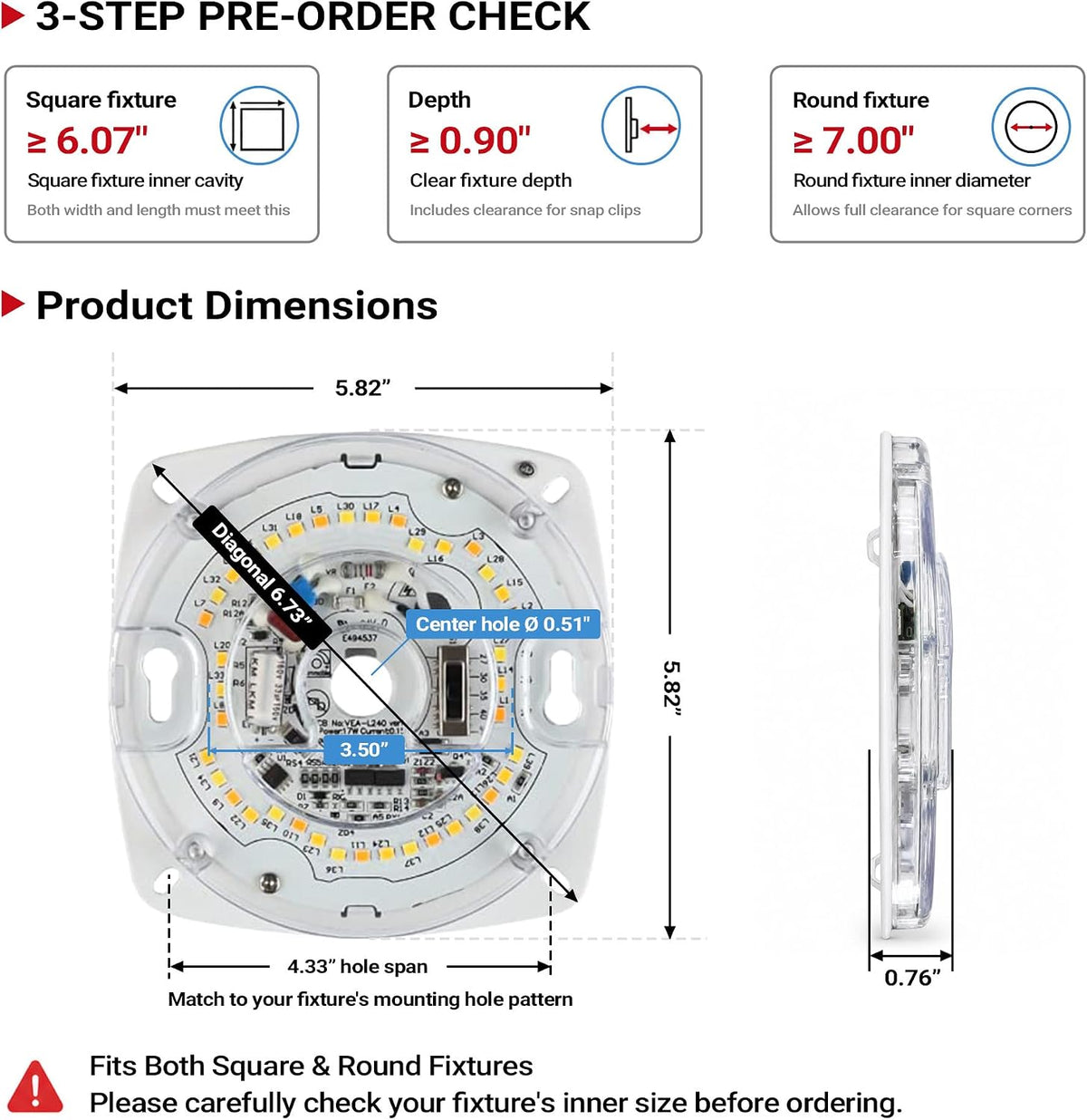

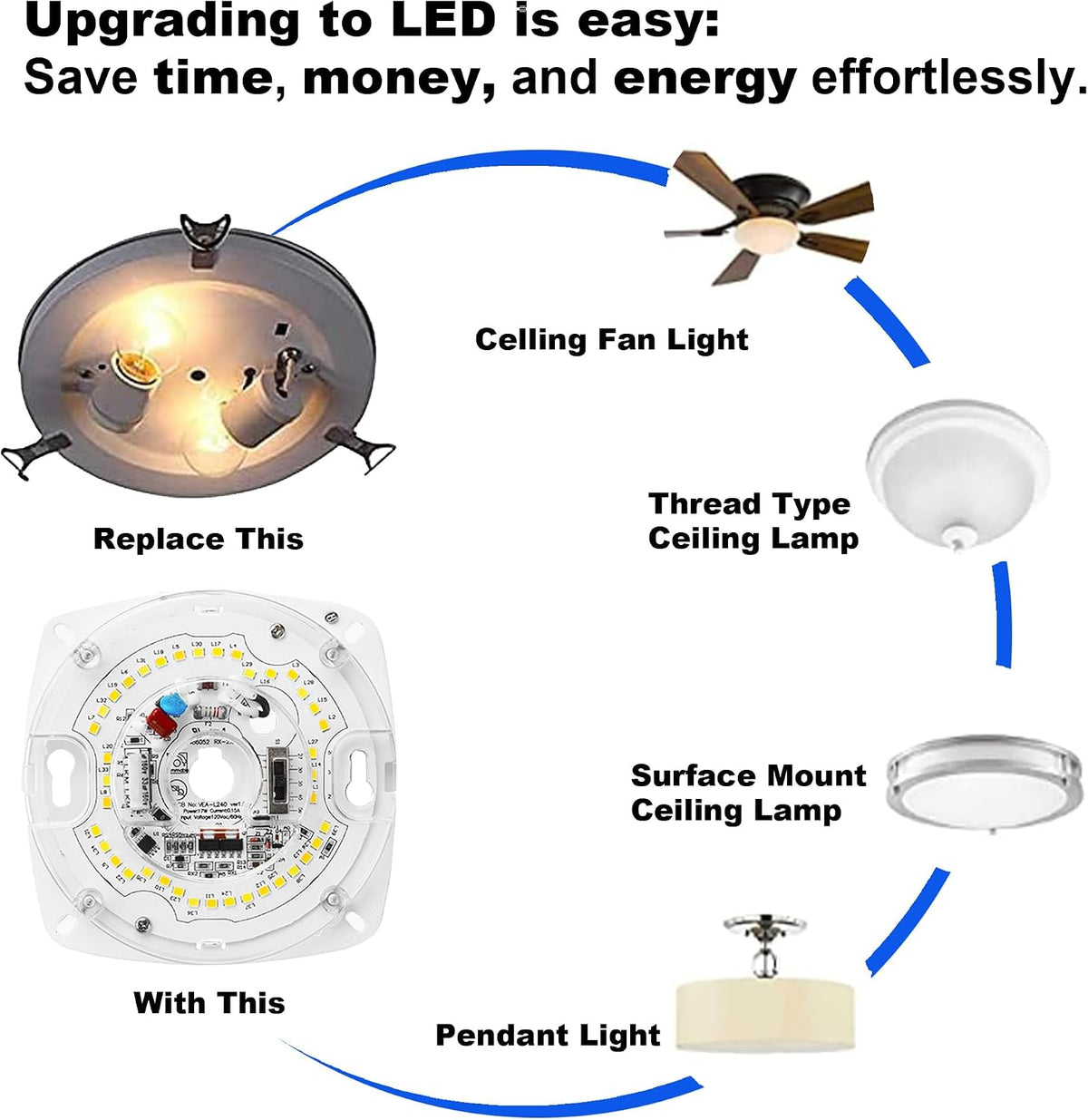

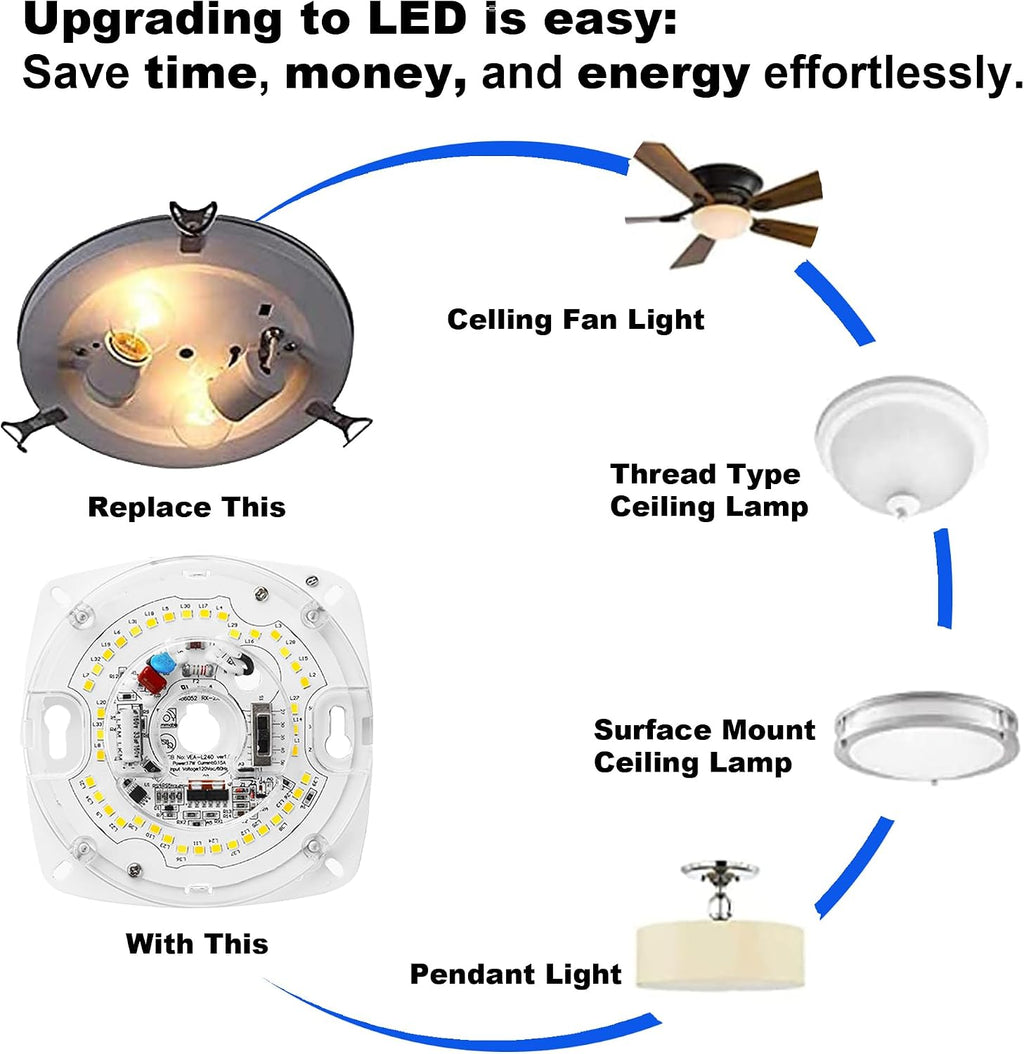

- Compact Retrofit Design: This LED light engine features a 5.82" PCB with a 6.73" overall size, rated for damp locations like bathrooms, and fits ceiling fan light replacement across ceiling flush and pendant fixtures. Installs via dome, junction box, or surface mounting - no rewiring of your fixture required

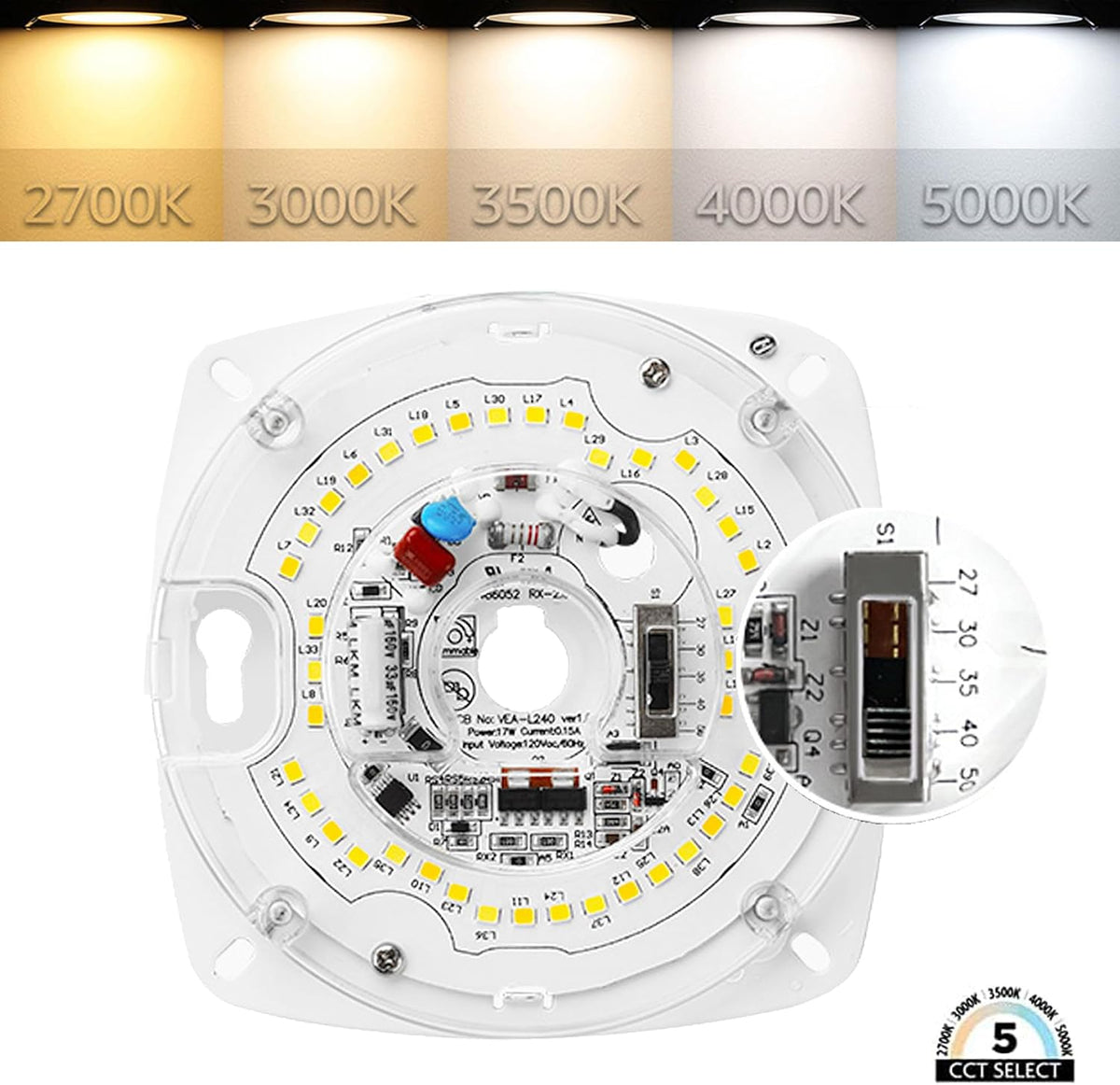

- 5-Setting Color Temperature: Selectable across 2700K, 3000K, 3500K, 4000K and 5000K at just 23W and 120V, equal to 2x60W incandescent, 2x13W CFL, or 1x20W T9 circline, an energy saving LED ceiling fan light that cuts your electric bill
- True To Life Color: CRI80 makes this LED light engine circuit board a real upgrade over a plain ceiling light bulb, so whites look white and colors look true in any fixture
- Smooth Triac Dimming: This LED light module works as a dimmable LED ceiling fan light, with flicker under 30% even at 20% dimming, delivering comfortable, steady brightness control in any fixture
- UL/JA8 Certified & Built To Last: With an integral driver-on-board (DOB) design, this 120V AC direct-drive light engine needs no external driver. A steel heat sink delivers better heat dissipation, so it runs cool and lasts 25,000 hours, backed by a 5-year limited warranty - just email us anytime if an issue comes up
